BDW-206JR

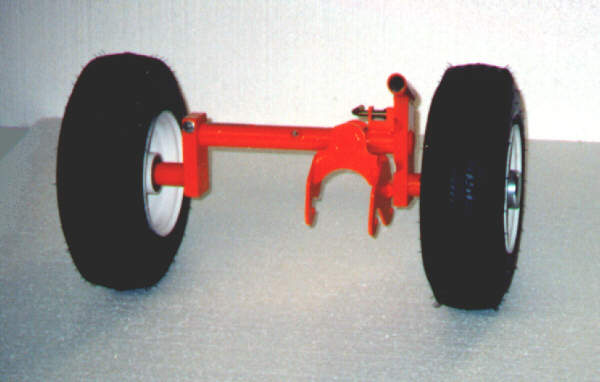

   This Dual Wheel design reduces twisting by providing equal pressure on both sides of the tube. Therefore the stress and strain associated with single wheel systems is greatly reduced. A special cammed out area (see view A) locks the wheels onto the skid tube pins, eliminating the need to install any pins into your skid tube. The aircraft is raised approximately 3" as the wheels are rotated into position and automatically lock via a spring loaded "L-pin". To lower the helicopter, merely pull the pin and walk the bar down. Part number BDW-206JR consists of a ship set which is wheels for both sides of the helicopter and 1 ea. handle bar.

Specifications:

  • App. Models: Bell and Agusta Bell Jet Ranger (Hi or Low skids)
  • Military model: TH-67 Creek
  • Skid tube dia. 3.00"
  • Attach points, 3 pins .50 dia.
  • Operation-Mechanical, 48" bar
  • Tire size 4.10 x 3.50-6 @ 85 psi.
  • Approximate skid lift 3"
  • Weight each side 36 lbs.
  • Dimensions 14 x 14 x 22
  • Color orange powder coated
  • Remove prior to flight
Shipping Information:
  • 2 boxes 14 x 19 x 27 (4.16 cu. ft. ea.)
  • 1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
  • Total weight 80 lbs. (8.28 cu. ft.)
