BDW-206LF

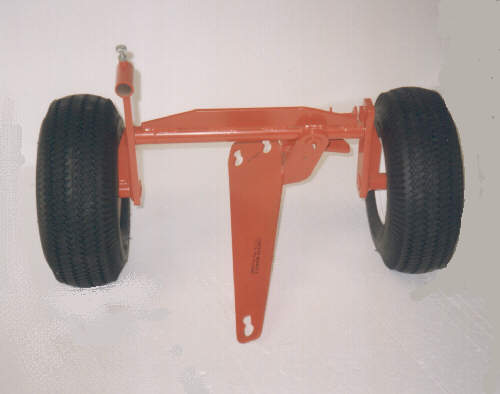

This set of dual wheels is designed for the Long Ranger on pan floats. See the BDW-206LS for the advantages of a dual wheel system. This model also includes a locking handle mechanism for ease of movement. Part number BDW-206LF is for a ship set  and 1 ea. handle bar.

Specifications:
  • App. Models: Bell Long Rangers with Pan Floats
  • Attach points, 3ea studs .50 dia.
  • Operation-Mechanical, 50" locking bar
  • Tire size 5.30 x 4.50-6 @ 95 psi.
  • Approximate skid lift 2"
  • Weight each side 51 lbs.
  • Dimensions 15 x 18 x 29
  • Color orange powder coated
  • Remove prior to flight
Shipping Information:
  • 2 boxes 15.5 x 26 x 33 (7.69 cu. ft. ea.)
  • 1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
  • Total weight 110 lbs. (15.50 cu. ft.)
