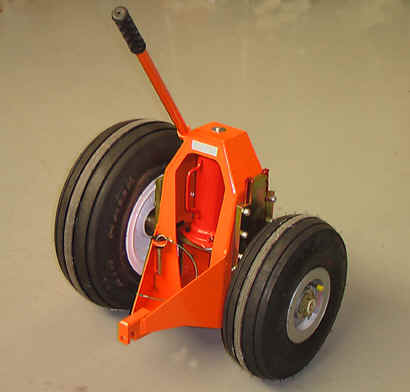

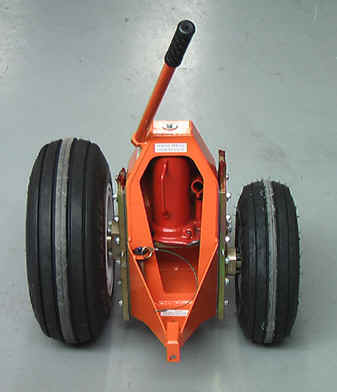

BDW-245C-1800/500

    The BDW-245B-1800/500 is identical to the BDW-245B-1800 with the exception of the inner tire/wheel assembly. The smaller inner wheel is required for aircraft with float bags or equipment interference that have the need for more clearance on the inside of the skid tube. Part number BDW-245C-1800/500 is a complete ship set includes a right and left wheel asm with two handles.

Specifications:
  • App. Models: Bell 204, 205, 212 and 412 with float bags
  • Skid tube dia. 4.00"
  • Attach points, 2 ea. eye bolts fit both 16.25" & 18.00" centers
  • Operation-Hydraulic 8 ton jack
  • Tire size 18 x 5.5 @ 105 psi. (outer) 5.00 x 5-10 ply (inner)
  • Approximate skid lift 4"
  • Weight each side 95 lbs.
  • Dimensions 19 x 20 x 21
  • Color orange powder coated
  • Remove prior to flight
 Shipping Information:
  • 2 boxes 18 x 22 x 24 (5.5 cu. ft. ea.)
  • Total weight 191 lbs. (11 cu. ft.)
