BDW-246A-1805/1806

Military Special Application Wheels

For Bell models: UH-1 and AH-1 series helicopters



    These wheels are specifically designed for special application where the removal of the outside wheel is required for loading and unloading the helicopter aboard aircraft such as C-130’s. The model BDW-246A-1805 / 1806 is very similar to our model BDW-245A-1800 when used in the dual wheel application. The major difference is that the center of the wheels are centered between the skid tube pick up points. It has a bracket and tie straps which tie into the hard points when used in the single wheel configuration and has a 1" higher skid lift for better clearance.



Specifications:
  • App. Models: UH-1 series
  • Skid tube dia. 4.00"
  • Attach points, 2 ea. eye bolts fit both 16 1/4" and 18.00" centers
  • Operation-Hydraulic 8 ton jack
  • Tire size 18 x 5.5 @ 105 psi.
  • Approximate skid lift 4"
  • Weight each side 95 lbs.
  • Dimensions 19 x 20 x 21
  • Color: Customer requirements
  • Remove prior to flight

Shipping Information:

  • 2 boxes 18 x 22 x 24 (5.5 cu. ft. ea.)
  • Total weight 200 lbs. (11 cu. ft.)

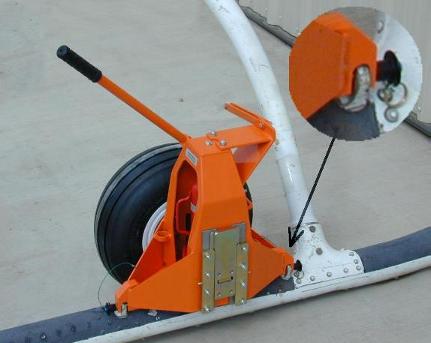

OPTIONAL SINGLE WHEEL CONFIGURATION

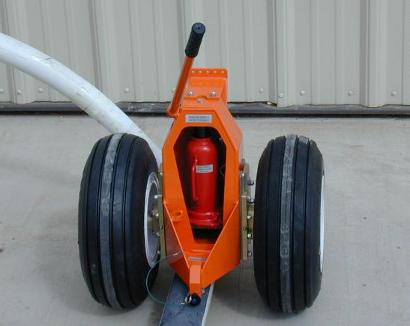

STANDARD DUAL WHEEL CONFIGURATION
