BDW-R44A

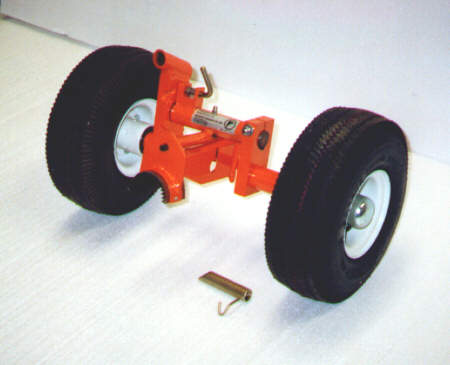

This newly designed dual wheel set fits the original single wheel fitting giving you the advantage of dual wheels. Part number BDW-R44A is for a complete ship set with 1 ea. handle bar.

Specifications:

App. Models: Robinson model R-44
Skid tube dia. 2.50"
Tire size 4.10 x 3.50-4 @ 85 psi.
Approximate skid lift 3"
Weight each side 22 lbs.
Dimensions 10 x 10 x 14
Color orange powder coating
Remove prior to flight

Shipping Information:

1 box 14 x 19 x 26 (4.0 cu. ft.)
1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
Total weight 52 lbs. (5.2 cu. ft.)
