BDW-BELL-2 AND -2A

    The BDW-BELL-2, -2A models are identical except for the adjustment of their spindle heights. They have a gross weight of 5600 lbs. per unit (ea. side). Both models are sold as sets and consist  of two bodies with two wheels ea. and a jack handle. The difference between the -2 and -2a is that the -2 has a lower mounting position for the spindle and therefore provides higher lift and will accommodate a 4" skid tube.

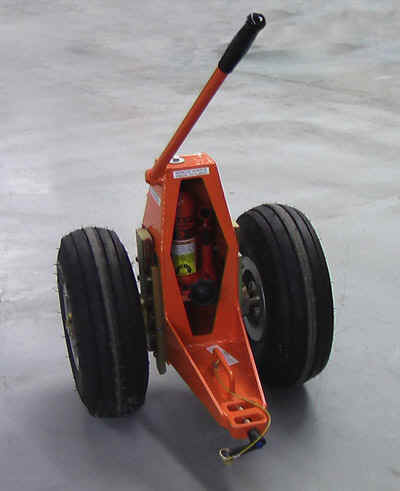

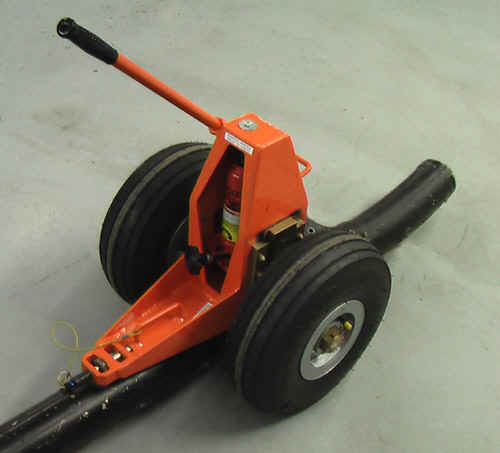

BDW-BELL-2A 1.jpg (57275 bytes)BDW-BELL-2A.jpg (50059 bytes)



Specifications:

  • -2 APP. MODELS: BELL 430 (4" skid tube)

  • -2A APP. MODELS: BELL 206L, 407, 427 (3" skid tube)

  • Attach points, 2 ea. eye bolts fit both 16.41" and 17.875" centers

  • Operation-Hydraulic 3 ton jack

  • Tire size 5.00 X 5  aircraft grade

  • Approximate skid lift 4"

  • Remove prior to flight

  • These wheels will fit the UH, AH, 205, 212 series with gross weights of less than 11,000 lbs.

Shipping Information:

  • 2 boxes 18 x 22 x 24 (5.5 cu. ft. ea.)

  • Total weight 191 lbs. (11 cu. ft.)



CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
