HRT-200

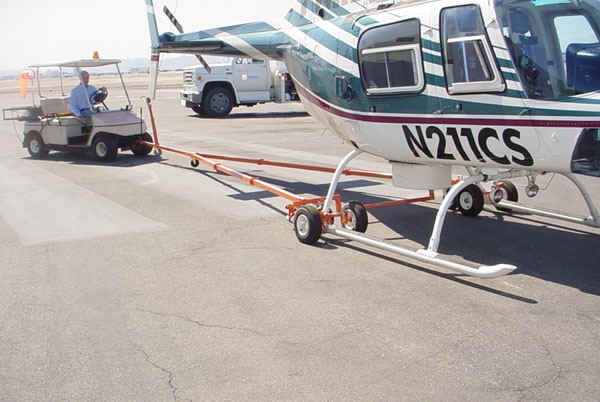

This rear tow, tow bar model HRT-200 is very similar to our tow bar model HT-500 with the exception it is longer and pulls the tail down to get clearance under the front skids. This fits the Bell 206, OH-58 and MD500 types with skid tube aft of cross tube for hook up. This tow bar can also be used for pulling from the front.

Specifications:

Skid tube dia. 2 1/2" to 3 1/4"

Length 24ft

Skid Spread: 25" - 96"

Weight: 185 lbs.

Max aircraft wt. 3000 lbs.

NOTE: THIS TOW BAR CAN BE USED FOR TOWING FROM BOTH THE FRONT AND REAR.

CLICK HERE FOR PARTS BREAKDOWN IN FORMAT

IF YOU CAN'T READ PDF FILES THEN CLICK HERE
