MILITARY HELICOPTER TOW BAR

MODEL HT-647A

FOR APACHE-BLACKHAWK-CHINHOOK

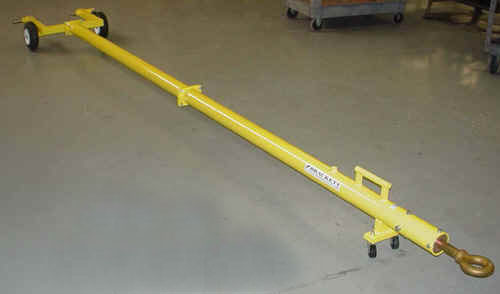

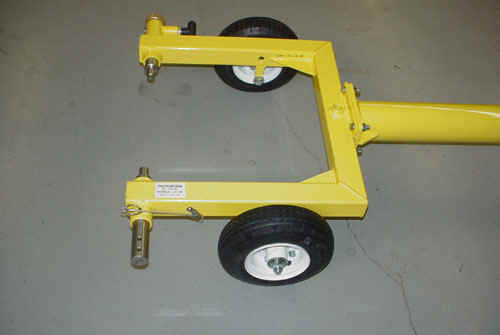

    The Model HT-647A tow bar is designed for everyday ramp use and can be quickly broken down into three pieces for easy    transporting. Pneumatic wheels take the hassle out of moving to and from the aircraft.

    This tow bar can be converted to an HT-47S with the installation of the HT-47 kit.

    The assembled overall length is approximately 13 1/2 ft. This allows turning clearance for the horizontal stabilizer when using a Hummer as a tow vehicle.

SPECIFICATIONS:

MATERIAL:  ALUMINUM TONGUE/STEEL HEAD

ASSEMBLED LENGTH: 13 ft. 6 in.

SHIPPING WEIGHT: 96 lbs.

FINISH: MIL YELLOW POWDER COAT OR CUSTOMIZED TO YOUR SPECS.





HT-60 (W).JPG (16923 bytes)

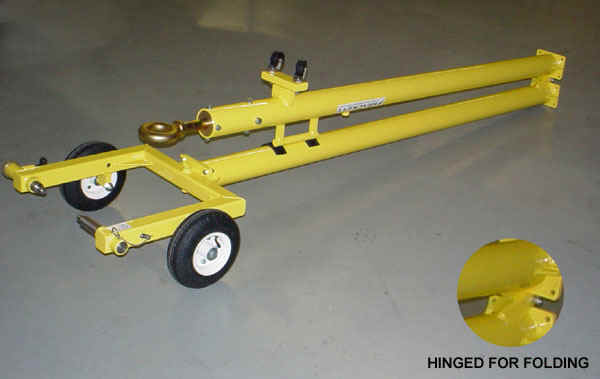

HT-647 HINGED.jpg (43729 bytes)

CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
