MODEL HT-88

MILITARY/CIVILIAN

HELICOPTER TOW BAR

FOR BELL UH-1, 205, 212, 412 TYPES

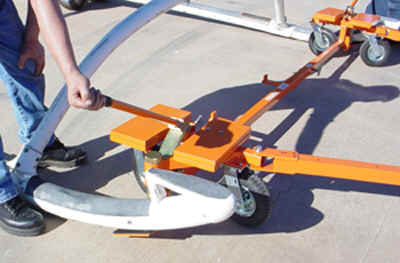

Designed for one man operation

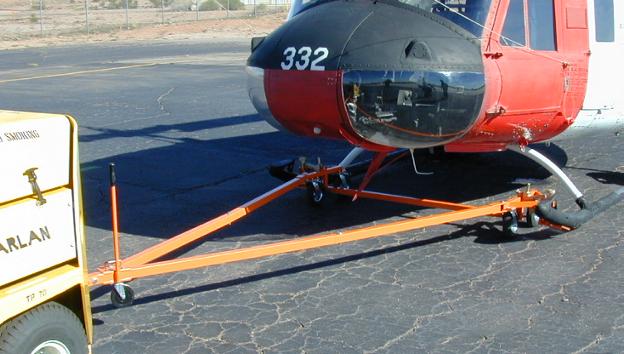

     This tow bar is designed for the Bell Helicopters with the 4" skid tubes and 2" tow rings. The special feature is safety as this bar eliminates the need for a man on the stinger. This tow bar has the required clearances when the skids are equipped with snow shoes.

      The HT-88 is easy to install and can be disassembled into 6 ft. sections for easy transporting. The tow bar comes with a one year warranty.

Specifications:

  • HT-88 Ring Hitch
  • Length 144"
  • Weight 369 lbs.
  • Width spread  83" to 114"
  • Color: Orange powder coat or military preferences
