HT-8

  This tow bar is designed to fit the 2" rings on the skid tubes on Bell 212, 412, UH-1, AH-1 etc.





Specifications:

  • Length: 12'
  • Spread: 25" to 120"
  • Weight: 120 lbs.
  • Tires: Pneumatic 2.50-4
  • Color: Orange powder coat


Shipping Information:

  • 2 boxes 14 x 19 x 27 (4.16 cu. ft. ea.)
  • 1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
  • Total weight 120 lbs. (8.28 cu. ft.)

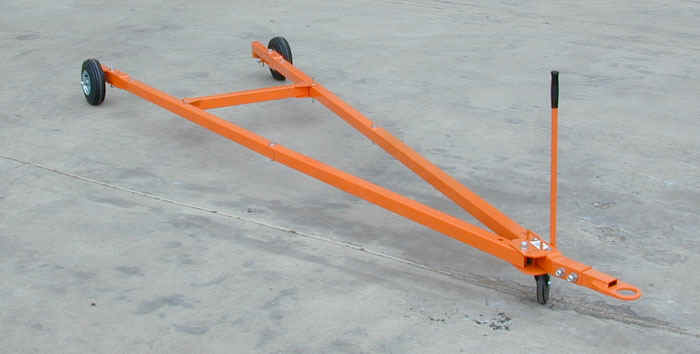

HT-8 (1).jpg (54220 bytes)

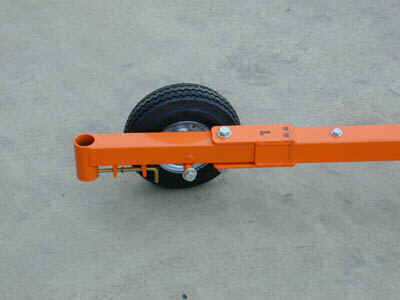

HT-8 (2).jpg (24396 bytes)

CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
