BDW-206SW

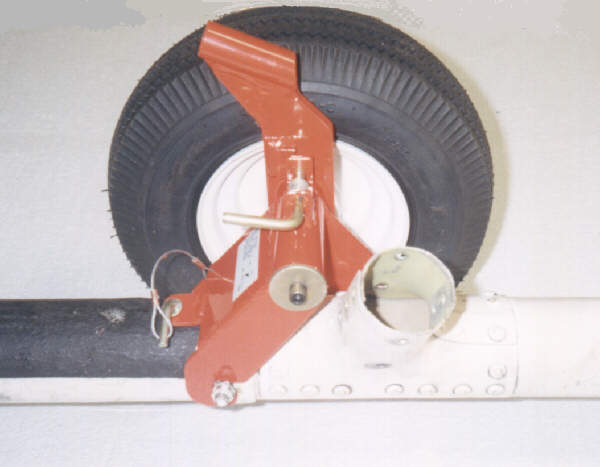

   Jet rangers with the light weight 6 pac floats will require this single wheel design. The wheel assembly is locked in place with a pin into the skid tube. The wheels lock automatically in the full down position. Part number BDW-206SW is a complete ship set with 1 ea. handle bar.

Specifications:
  • App. Models: Jet Ranger w/light weight 6 pac floats
  • Skid tube dia. 3.00"
  • Attach points, 3 pins .50 dia.
  • Operation-Mechanical, 48" bar
  • Tire size 4.10 x 3.50-6 @ 85 psi.
  • Approximate skid lift 3"
  • Weight each side 21 lbs.
  • Dimensions 14 x 14 x 22
  • Color orange powder coated
  • Remove prior to flight
Shipping Information:
  • 1 boxes 13 3/4 x 13 3/4 x 26 (3.0 cu. ft. ea.)
  • 1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
  • Total weight 50 lbs. (3.12 cu. ft.)
