BCW-4300

    These front mounted ground handling caster wheels were designed for the new AH-1Z and UH-1Y helicopters. These new wheels can also be used as replacements for PN 209-0520-224-1 mechanical caster wheels used on AH-1 Series helicopters.

Specifications:
  • Attach points on 8" centers
  • Hydraulic operation
  • Aluminum Construction
  • Stainless steel fittings
  • Approximate skid lift 3 1/2"
  • Shipping dimensions 38 x 13 x 26
  • Gross weight: 4300 lbs.
  • Finish: Powder coat white or military request
  • NSN 1730-01-038-7655
  • NSN 4920-01-480-6482

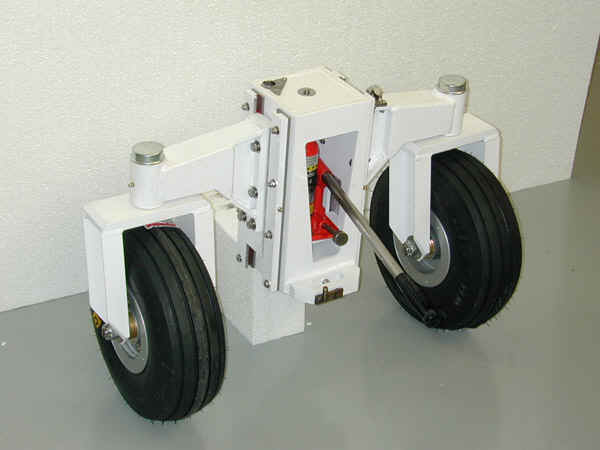

 BCW-4300 (1).jpg (67669 bytes)

CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)
