TH-5, TH-5B & TH-5C TOWBAR

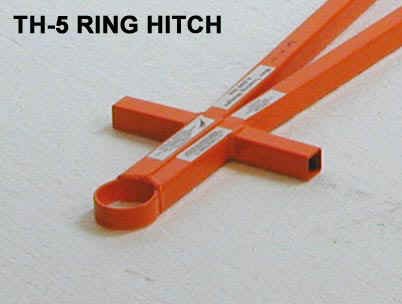

   Our TH-5 is a light-weight universal towbar designed  primarily for hand towing. The TH-5 eliminates the mad hunt for the proper towbar when moving a hangar full of singles and light twins. This towbar also has a good handle for pulling and a ring ,ball or clevis hitch for  occasional light towing. NOTE: The piper manual states that the tow pins are for hand towing. For powered towing we suggest our adapter set P/N T-P228A. For Cessnas with wheel pants installed use adapter set P/N T-N182A to prevent scratching.

Specifications:
  • Maximum gross aircraft weight: 4,000 lbs  (1820 kg)
  • Maximum opening 12 1/2" (31.75 cm)
  • Length: 74" (188 cm)
  • Weight: 14 lbs.  (6.4 kg) with ring hitch)
                    15 lbs.  (6.8 kg) with ball hitch)
    Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
  • Color orange powder coating
 OPTIONS:
  • For more information on our Universal Tow bars

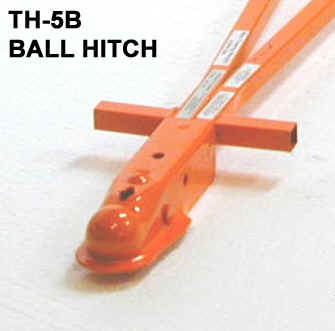

  • TH-5B Tow bar with ball hitch

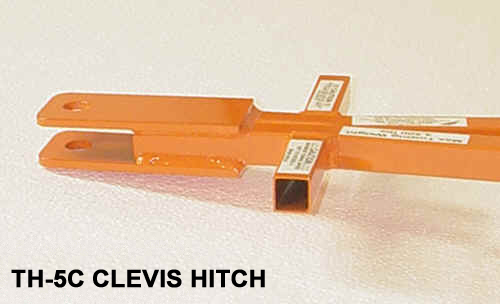

  • TH-5C Tow bar with clevis hitch
  • Adapters

TH-5B (0).jpg (89914 bytes)





CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)
