UNIVERSAL TOW BARS

and ACCESSORIES

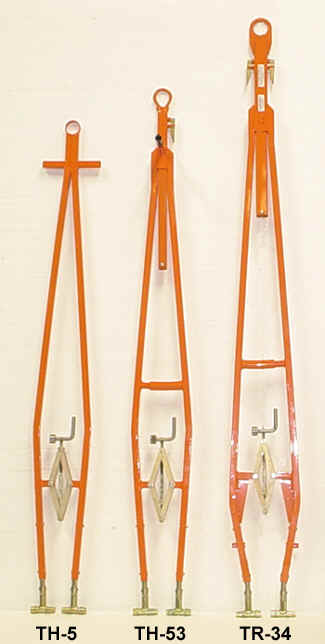

TTH-5 (1).jpg (13502 bytes)

TH-6

 TTH-53 (1).jpg (13250 bytes)

TH-53

 TTR-34 (1).jpg (12795 bytes)

TR-34





PART NUMBER HITCH STYLE LENGTH WEIGHT IN LBS. MAX A/C GRS. WT. IN LBS.
TH-6R RING 2" FIXED 74" 18 4, 000
TH-6B BALL 2" FIXED 74" 19 4,000
TH-53B BALL 2" TELESCOPING 80 TO 94" 23 7,000
TH-53C CLEVIS 3/4" HOLE 80 TO 94" 22 7,000
TH-53R RING 2" TELESCOPING 80" TO 94" 22 7000
TR-34B BALL 2" TELESCOPING 84" TO 104" 36 14,000
TR-34C CLEVIS 3/4" HOLE 84" TO 104" 35 14,000
TR-34R RING 2 1/4" TELESCOPING 84" TO 104" 35 14,000
TR-34SRW SHOCK RING W/WHEELS 90" TO 112" 48 14,000

HITCH OPTIONS














NEED A RECEIVER HITCH?


BRACKETT NOW OFFERS THIS PINTLE HITCH (P/N APH-10050) FOR YOUR TUG, GOLF CART, TRACTOR, ETC. THIS HITCH WILL ACCOMMODATE BOTH OUR BALL AND RING HITCHES. ATTACH HOLES ARE FOUR 1/2" DIA. RECTANGULAR PATTERN 3 3/8" C/L HORIZONTAL X 1 3/4" C/L VERTICAL.
