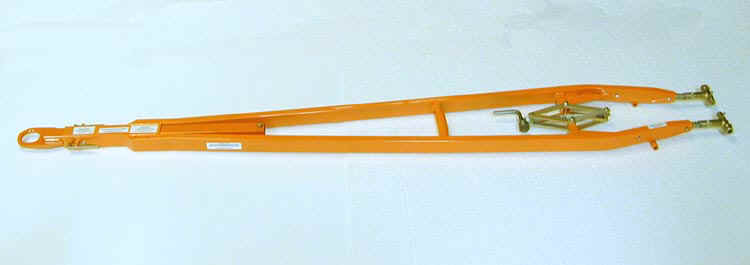

TR-34 TOWBAR

INCLUDES: TR-34R (RING), TR-34B (BALL), TR-34C (CLEVIS) AND TR-34SRW (SHOCK RING WITH WHEELS)

   The model TR-34 is a blend between our previous two models TR-3 and TR-4. The TR-34 with Brackett universal head assemblies has the capability of fitting onto most aircraft from the Cessna 150 up through King Airs, etc. with a published gross weight of under 14,000 lbs. Our biggest selling universal tow bar, the TR-34 is available in four different tongue configurations. Wheels are also available for moving the tow bar to and from the aircraft. NOTE: The piper manual states that the tow pins are for hand towing. For powered towing we suggest our adapter set P/N T-P228A. For Cessnas with wheel pants installed use adapter set P/N T-N182A to prevent scratching.

Specifications:
  • Maximum aircraft gross weight: 14,000 lbs  (6,350 kg)
  • Maximum opening 12 1/2" (31.75 cm)
  • Length: 92" (233 cm) closed, 104" (264 cm) extended
  • Weight: 35 lbs. (16kg)  (Shock Ring add 5 lbs.)
  • Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
  • Color orange powder coating
 OPTIONS:
  • Ring hitch: P.N. TR-34R
  • Ball hitch: P.N. TR-34B
  • Clevis hitch: P.N. TR-34C
  • Shock Ring hitch: P.N. TR-34SR
  • Shock Ring hitch w/wheels: P.N. TR-34SRW
  • Adapter for towing Piper PA-22,28:P.N. T-P228 A
  • Adapter for Cessna with wheel pants:P.N. T-N182 A
  • Extended ring hitch (10ft): P.N. TR-34RL
  • Adapters
  • For more information check out our Universal Tow bars
