TH-53 TOWBAR

This towbar fits in our line between the TH-5 and the TR-34. The Th-53 comes with a telescoping tongue (R) ring or (B) ball, for easier hookups.  The TH-53 can handle most singles and medium twins up to 7000 lbs. ramp weight. NOTE: The piper manual states that the tow pins are for hand towing. For powered towing we suggest our adapter set P/N T-P228A. For Cessnas with wheel pants installed use adapter set P/N T-N182A to prevent scratching.

Specifications:
  • Maximum aircraft weight: 7,000 lbs. (3,175 kg)
  • Maximum opening 12 1/2" (31.75 cm)
  • Length: 80" (203 cm) closed, 94" (234 cm) extended
  • Weight: 22 lbs. (9 kg)
  • Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
  • Color orange powder coating
 OPTIONS:
  • Ring hitch: P.N. TH-53R
  • Ball hitch: P.N. TH-53B
  • Clevis hitch: P.N. TH-53C
  • For more information see our Universal Tow bar pages
  • Adapters

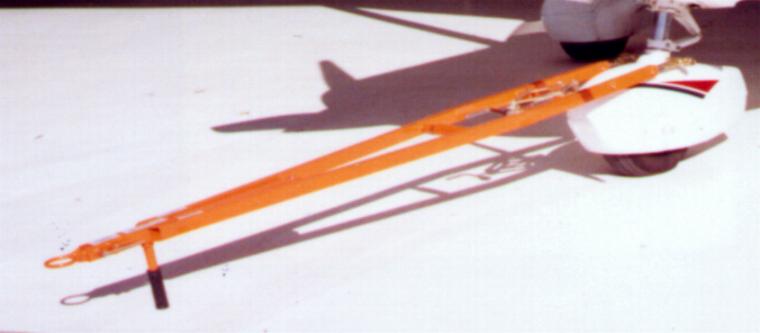

TH-53 (A).JPG (22330 bytes)
